BS 3242 Standard AAAC All Aluminium Alloy Conductor

Litlhaloso:

Tlhaloso ea BS 3242 bakeng sa Aluminium Alloy Stranded Conductors bakeng sa Phetiso ea Matla a Holimo

Romela Imeile

Lintlha tse Potlakileng

Letlapa la Parameter

Li-tag tsa Sehlahisoa

Lintlha tse potlakileng :

All Aluminium Alloy Conductor e na le mehala ea aluminium alloy.Lithapo tsa motsoako oa aluminium li hokahane ka botebo.

Lisebelisoa :

All Aluminium Alloy Conductor e sebelisoa haholo-holo e le thapo ea phetisetso e se nang letho le thapo ea mantlha le ea bobeli.AAAC e boetse e loketse ho rala ka mose ho mabasi, linōka le likhohlo moo likarolo tse khethehileng tsa sebaka li leng teng.

Mehaho :

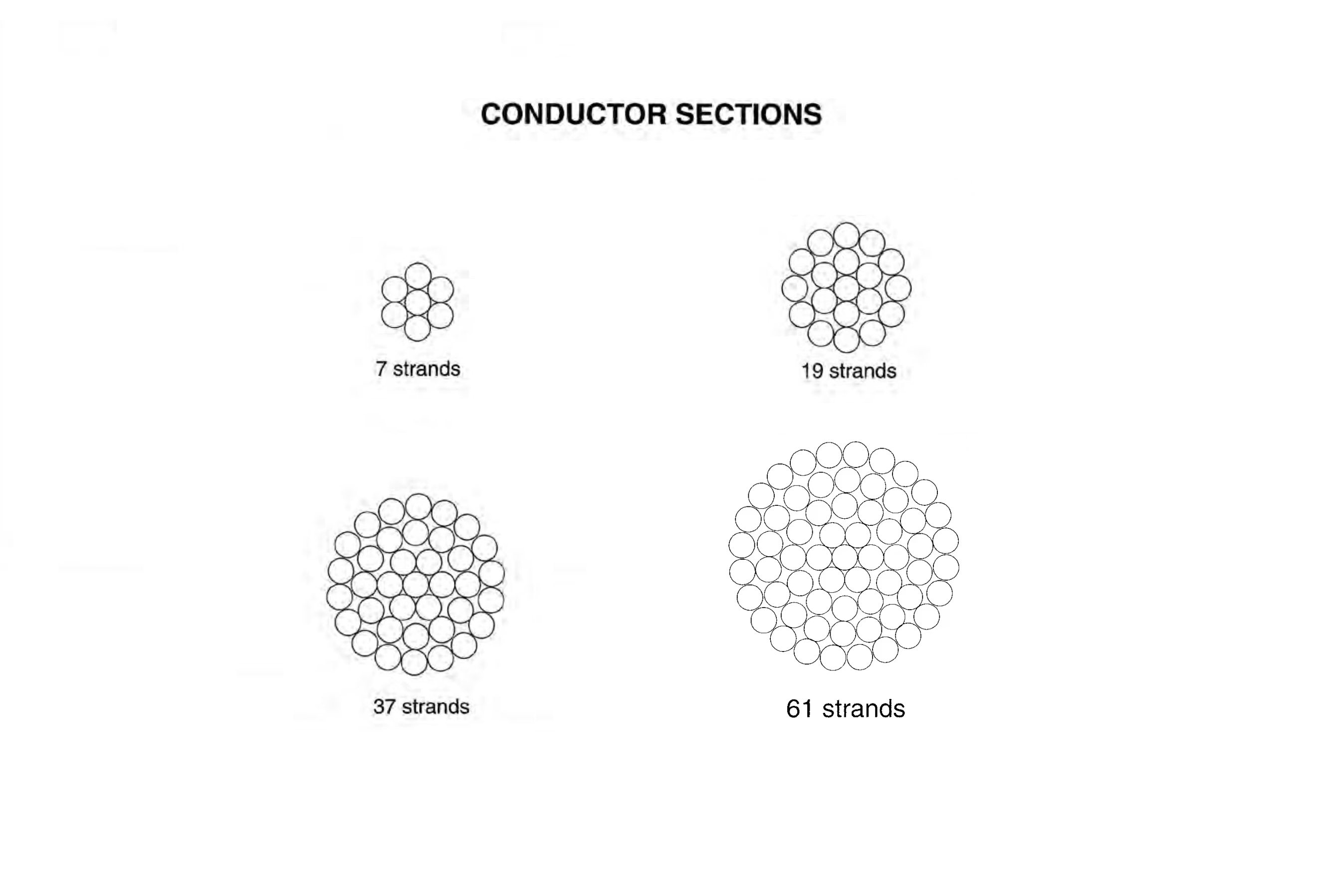

All Aluminium Alloy Conductor ke concentric lay-stranded bare conductor e nang le lithapo tsa Aluminium alloy 6201-T81 tse fumanehang meahong e le 'ngoe le meaho e mengata.

Lisebelisoa tsa ho Paka :

Moropa oa lehong, moqomo oa lehong oa tšepe, moropa oa tšepe.

BS 3242 Litlhaloso tsohle tsa Aluminium Alloy Conductor e tloaelehileng

Lebitso la Khoutu	Sebaka sa lebitso	Stranding	Diameter of Conductor	Linear Mass	Rated Matla	Lebitso la Khoutu	Sebaka sa lebitso	Stranding	Diameter of Conductor	Linear Mass	Rated Matla
-	mm²	Che./mm	mm	kg/km	kgf	-	mm²	Che./mm	mm	kg/km	kgf
Lebokose	15	7/1.85	5.55	51	537		100	19/2.82	14.1	326	3393
Acacia	20	7/2.08	6.24	65	680	Mulberry	125	19/3.18	15.9	415	4312
Almonde	25	7/2.34	7.02	82	861	Molora	150	19/3.48	17.4	497	5164
Kedare	30	7/2.54	7.62	97	1014	Elm	175	19/3.76	18.8	580	6030
	35	7/2.77	8.31	115	1205	Popoleri	200	37/2.87	20.09	659	8841
Fir	40	7/2.95	8.85	131	1367		225	37/3.05	21.35	744	7724
Hazel	50	7/3.30	9.9	164	1711	Sycamore	250	37/3.22	22.54	835	8664
Phaene	60	7/3.61	10.83	196	2048	Upas	300	37/3.53	24.71	997	10350
	70	7/3.91	11.73	230	2402	Walnut	350	37/3.81	26.67	1162	12053
Moluoane	75	7/4.04	12.12	245	2565	Yew	400	37/4.06	28.42	1319	13685
	80	7/4.19	12.57	264	2758	Totara	425	37/4.14	28.98	1372	14233
	90	7/4.44	13.32	298	3112	Rubus	500	61/3.50	31.5	1620	16771
Oak	100	7/4.65	13.95	325	3398	Araucaria	700	61/4.14	37.26	2266	23450
