Romela ImeileAACSR Aluminium Alloy Conductor Steel Reinforced ke mokokotlo oa tšepe o phuthetsoeng ka lesela le le leng kapa lithapo tse ngata tse kopantsoeng ka har'a lithapo tsa aluminium. Mokotla oa tšepe o bonts'a matla a matla a mochini le matla a tsitsitseng, a o nolofalletsang ho ts'ehetsa conductor le ho amohela nako e telele. Mokhanni oa kantle oa aluminium alloy o na le conductivity e ntle ea motlakase mme o na le boikarabello ba ho tsamaisa hona joale. E na le khanyetso e ntle haholo ea kutu 'me e khona ho mamella maemo a fapaneng a thata. Bakeng sa mela e telele e holimo, ke tharollo e ka tšeptjoang le e theko e tlaase.
Lisebelisoa :
AACSR e sebelisoa haholo mekhoeng ea phetisetso ea matla a holimo le ea kabo, hammoho le melapo ea mantlha le ea bobeli. The AACSR Aluminium Alloy Conductor Steel Reinforced e loketse ho sebelisoa litora tsohle tse sebetsang tsa phetisetso, le meaho e meng. Likopo li fapana ho tloha ho lithapo tsa phetisetso tse phahameng tsa motlakase (EHV) ho isa ho litšepe tse tlase tsa ts'ebeletso nakong ea kabo kapa litekanyo tsa tšebeliso libakeng tsa poraefete joalo ka ACSR.
AACSR Aluminium Alloy Conductor Steel Reinforced e boetse e na le rekoto e telele ea ts'ebeletso ka lebaka la moruo oa eona, ts'epo, le matla a boima ba 'mele. Boima bo kopantsoeng bo bobebe le conductivity e phahameng ea aluminium e nang le matla a li-cores tsa tšepe li etsa hore ho be le tsitsipano e phahameng, ho fokotseha ho fokolang, le nako e telele ho feta mokhoa leha e le ofe o kang oa ACSR.
Ha ho bapisoa le ACSR, matla a khoheli a aluminium conductor a matla ho feta.

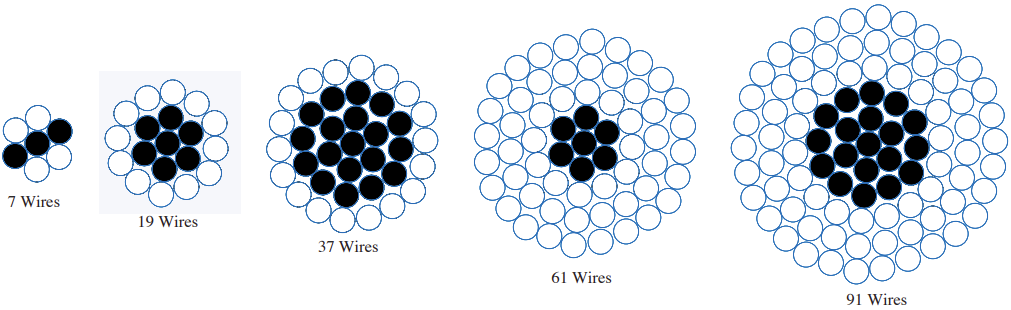

Mehaho :
Karolo ea tšepe: Lithapo tsa tšepe tse koahetsoeng ka zinc, terata e le 'ngoe kapa lithapo tse ngata tse kentsoeng ka har'a likhoele.
Karolo ea Aluminium: Lithapo tsa aluminium tse huloang ka thata, tse kholehileng
Lisebelisoa tsa ho Paka :
Moropa oa lehong, moqomo oa lehong oa tšepe, moropa oa tšepe.
Litlhaloso tse Matlafalitsoeng tsa IEC 61089 AACSR Aluminium Alloy Conductor Steel Matlafatsoa
| Lebitso la Khoutu | No./Dia.of Al Alloy Wire | No./Dia.of Steel Wire | Kakaretso ea bophara ba Conductor | Hoo e ka bang. Boima ba 'mele | Max.DC Resistance of Conductor at 20℃ | Rated Matla | |
| Mokhanni oa A2/S1A | Mokhanni oa A2/S3A | ||||||
| mm² | Che./mm | Che./mm | mm | kg/km | Ω/km | kN | kN |
| 16 | 6/1.98 | 1/1.98 | 5.93 | 74.4 | 1.7934 | 9.02 | 9.88 |
| 25 | 6/2.47 | 1/2.47 | 7.41 | 116.2 | 1.1478 | 13.96 | 15.25 |
| 40 | 6/3.13 | 1/3.13 | 9.38 | 185.9 | 0.7174 | 22.02 | 24.17 |
| 63 | 6/3.92 | 1/3.92 | 11.8 | 292.8 | 0.4555 | 34.68 | 37.58 |
| 100 | 18/2.85 | 1/2.85 | 14.3 | 366.4 | 0.288 | 41.24 | 42.97 |
| 125 | 18/3.19 | 1/3.19 | 16 | 458 | 0.2304 | 51.23 | 53.47 |
| 125 | 26/2.65 | 7/2.06 | 16.8 | 579.9 | 0.231 | 69.86 | 76.42 |
| 160 | 18/3.61 | 1/3.61 | 18 | 586.2 | 0.18 | 65.58 | 68.03 |
| 160 | 26/3.00 | 7/2.34 | 19 | 742.3 | 0.1805 | 88.52 | 96.61 |
| 200 | 18/4.04 | 1/4.04 | 20.2 | 732.8 | 0.144 | 81.97 | 85.04 |
| 200 | 26/3.36 | 7/2.61 | 21.3 | 927.9 | 0.1444 | 110.64 | 120.77 |
| 250 | 22/4.08 | 7/2.27 | 23.1 | 1013.5 | 0.1154 | 117.09 | 124.72 |
| 250 | 26/3.75 | 7/2.92 | 23.8 | 1159.6 | 0.1155 | 138.31 | 150.96 |
| 315 | 45/3.2 | 7/2.14 | 25.8 | 1196.5 | 0.0917 | 136.28 | 143.3 |
| 315 | 26/4.21 | 7/3.28 | 26.7 | 1461.4 | 0.0917 | 171.9 | 188.44 |
| 400 | 45/3.61 | 7/2.41 | 28.9 | 1519.4 | 0.0722 | 172.1 | 180.36 |
| 400 | 54/3.29 | 7/3.29 | 29.7 | 1738.3 | 0.0723 | 201.46 | 218.17 |
| 450 | 45/3.83 | 7/2.55 | 30.6 | 1709.3 | 0.0642 | 193.61 | 203.28 |
| 450 | 54/3.49 | 7/3.49 | 31.5 | 1955.6 | 0.0643 | 226.64 | 245.44 |
| 500 | 45/4.04 | 7/2.69 | 32.3 | 1899.3 | 0.0578 | 215.12 | 225.86 |
| 500 | 54/3.68 | 7/3.68 | 33.2 | 2172.9 | 0.0578 | 251.82 | 269.73 |
| 560 | 45/4.27 | 7/2.85 | 34.2 | 2127.2 | 0.0516 | 240.93 | 252.97 |
| 560 | 54/3.9 | 19/2.34 | 35.1 | 2420.9 | 0.0516 | 283.21 | 305.25 |
| 630 | 72/3.58 | 7/2.39 | 35.8 | 2248 | 0.0459 | 249.62 | 258.08 |
| 630 | 54/4.13 | 19/2.48 | 37.2 | 2723.5 | 0.0459 | 318.61 | 343.4 |
| 710 | 72/3.8 | 7/2.53 | 38 | 2533.4 | 0.0407 | 281.32 | 290,85 |
| 710 | 54/4.39 | 19/2.63 | 39.5 | 3069.4 | 0.0407 | 359.06 | 387.01 |
| 800 | 72/4.04 | 7/2.69 | 40.4 | 2854.6 | 0.0361 | 316.98 | 327.72 |
| 800 | 84/3.74 | 7/3.74 | 41.1 | 3145.1 | 0.0362 | 356.03 | 374.44 |
| 900 | 72/4.28 | 7/2.85 | 42.8 | 3211.4 | 0.0321 | 356.6 | 368.69 |
| 900 | 84/3.96 | 7/3.96 | 43.6 | 3538.3 | 0.0322 | 400.53 | 421.25 |
| 1000 | 84/4.18 | 19/2.61 | 45.9 | 3916.8 | 0.0289 | 446.37 | 471.67 |
| 1120 | 84/4.42 | 19/2.65 | 48.6 | 4386.8 | 0.0258 | 499.93 | 528.27 |
